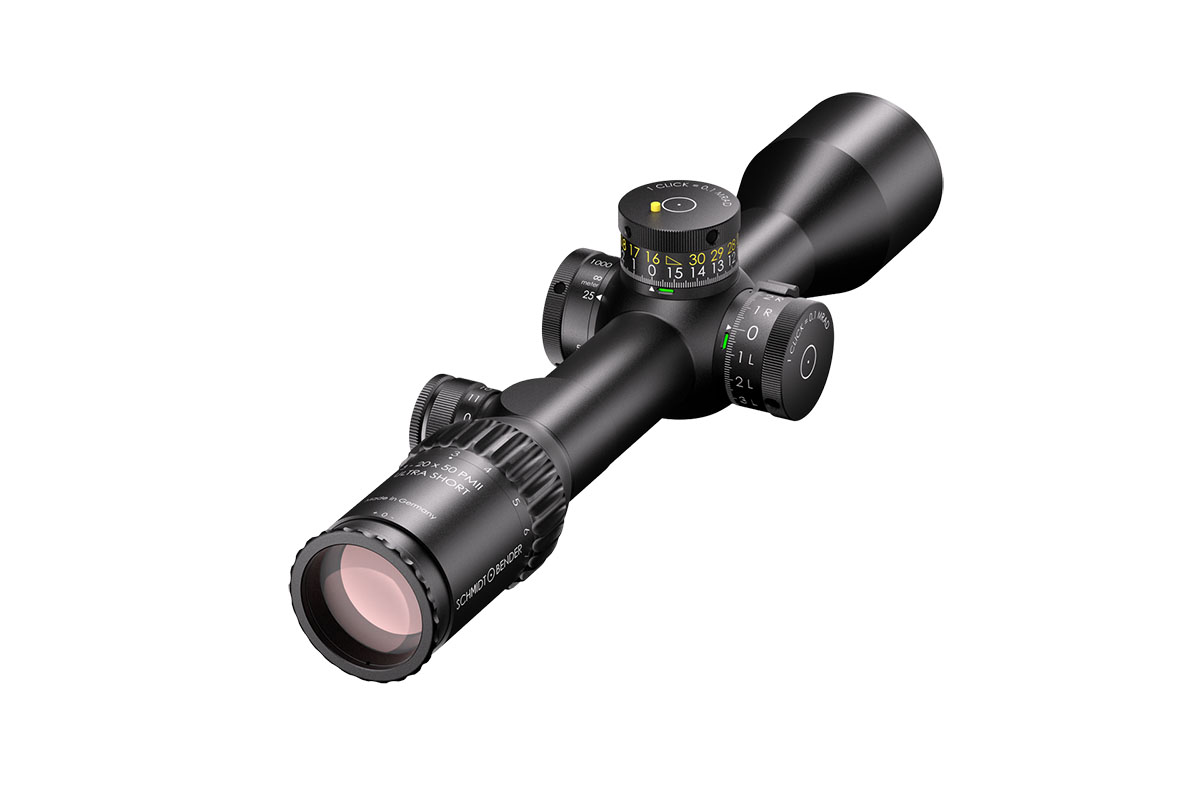

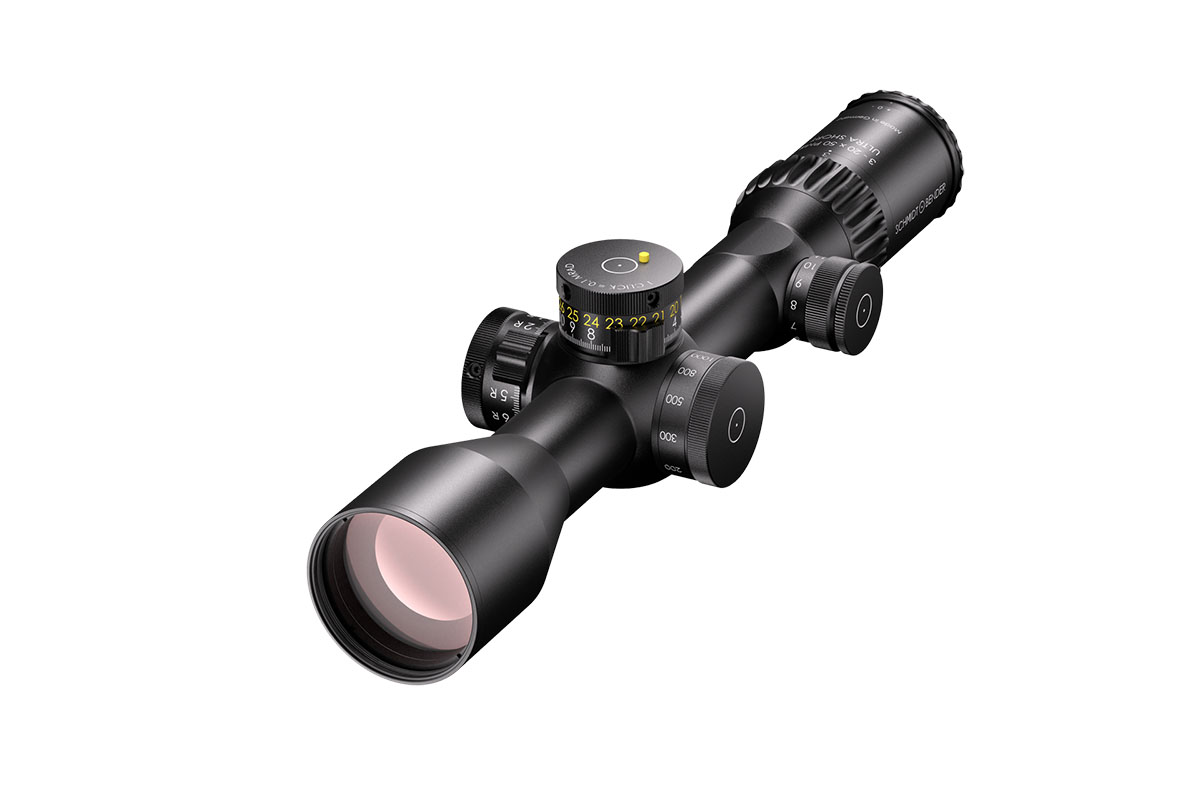

The 3‑20×50 PM II Ultra Short from Schmidt and Bender is a compact yet powerful riflescope engineered for high-performance engagements across medium to long distances. With its 3–20× magnification range and a 50 mm objective lens, it offers outstanding optical clarity and flexibility in a streamlined form factor.
Constructed around a robust 34 mm main tube, it maintains a length of approximately 340 mm and weighs around 900 g, striking an excellent balance between size and performance—ideal for mounting on compact platforms without compromising optics.
Its field of view spans roughly 13.0–2.1 m at 100 m, providing broad situational awareness at lower magnification and refined detail at the high end. The exit pupil ranges around 11.4–2.5 mm, and the eye relief is approximately 90 mm, supporting comfortable shooting in varied positions while maintaining strong light-gathering even as light fades.
Advanced features include first focal plane (FFP) illuminated reticle options, side parallax adjustment (from approx. 25 m to infinity), and a low-profile elevation turret optimized for tactical precision.
Key Specifications:
Magnification: 3–20×
Objective Lens Diameter: 50 mm
Main Tube Diameter: 34 mm
Field of View: approx. 13.0–2.1 m @100 m
Exit Pupil: approx. 11.4–2.5 mm
Eye Relief: approx. 90 mm
Length: approx. 340 mm
Weight: approx. 900 g
With precision optics, compact build, and rugged mechanical design, the 3‑20×50 PM II Ultra Short is built for serious shooters who demand premium performance in a versatile package.
Kompakt und leistungsstark – der 3–20x50 PM II Ultra Short!
Der 3–20×50 PM II Ultra Short von Schmidt und Bender ist ein kompakter, aber leistungsstarker Zielfernrohr, das für Hochleistungs-Einsätze über mittlere bis lange Distanzen entwickelt wurde. Mit einem Vergrösserungsbereich von 3–20× und einem Objektivdurchmesser von 50 mm bietet er herausragende optische Klarheit und Flexibilität in einem schlanken Design.
Merkmale:
- Robustes Design: Der Hauptkörper hat einen Durchmesser von 34 mm und eine Länge von ca. 340 mm, bei einem Gewicht von etwa 900 g. Ideal für kompakte Plattformen ohne Kompromisse bei der Optik.
- Sichtfeld: Ca. 13.0–2.1 m bei 100 m, bietet breites Situationsbewusstsein bei niedriger Vergrösserung und detaillierte Ansichten bei maximaler Vergrösserung.
- Austrittspupille: Etwa 11.4–2.5 mm, mit einem Augenabstand von ca. 90 mm, was komfortables Schiessen in verschiedenen Positionen unterstützt.
- Erweiterte Funktionen: FFP beleuchtete Absehen-Optionen, seitliche Parallaxenverstellung (von ca. 25 m bis unendlich) und ein flaches Höhenverstellrad, das für taktische Präzision optimiert ist.
Mit präziser Optik, kompaktem Aufbau und robustem mechanischen Design ist der 3–20×50 PM II Ultra Short für ernsthafte Schützen konzipiert, die erstklassige Leistung in einem vielseitigen Paket verlangen.
