ARCALOCK MLOK ATTACHMENT Area 419 is always looking for ways to improve existing products when Area 419 are not developing new technologies. With the rapid growth in popularity of ARCA rails in precision rifle, they saw a need to improve this great dovetail technology to something that could be mechanically locked in place instead of just friction. If you have ever tried using a Barricade stop on an existing ARCA rail, you’ve probably also seen it slide under much pressure. Introducing the ARCALOCK Dovetail Rail System *Rail is only locking with an Area 419 clamp* Rail Features: Serrated rail sides interface with Area 419’s proprietary clamp design to mechanically lock it in place so no movement is possible. Serrations are not sharp, will not damage bags or your hands. Rail is backwards compatible with standard Arca accessories, but will not be locking without Area 419’s clamp. Arcalock Dovetail Rail 6" M-LOK is 6″ long and weighs in at a paltry 2.2oz. NOTE: THIS RAIL REQUIRES 3 CONSECUTIVE MLOK SLOTS TO ATTACH. Arcalock Dovetail Rail 12” M-LOK is 12″ long giving you the entire length of the stock forend for attachments. The best part is, it still only weighs in at a paltry 4.1oz. NOTE: THIS RAIL REQUIRES 6 CONSECUTIVE MLOK SLOTS TO ATTACH. FOR STOCKS WITH FEWER MLOK SLOTS, YOU’LL WANT A 12″ UNIVERSAL RAIL WITH MLOK ATTACHMENT NUTS SPECS Made to the RRS 1.5″ Dovetail Standard, so you can be sure lever clamps will work. No sharp edges. Every corner is radiused, and every edge is chamfered on the machine. This takes longer to make, but it is the only right way. Type 3 Hard Coat anodized for additional durability. Made from 6061-T6 Aluminum. Made in-house in the USA from USA sourced Aluminum on USA made CNCs. Rail comes with all M-LOK mounting hardware.
Améliore ton expérience de tir avec la technologie Dovetail améliorée !
Le ARCALOCK MLOK ATTACHMENT d'Area 419 est conçu pour ceux qui cherchent à optimiser leurs équipements de tir. Avec la montée en popularité des rails ARCA dans le domaine des carabines de précision, Area 419 a identifié le besoin d'améliorer cette technologie de dovetail pour la rendre mécaniquement verrouillable, plutôt que de simplement compter sur la friction.
Présentation du système de rail Dovetail ARCALOCK
Si tu as déjà essayé d'utiliser un Barricade stop sur un rail ARCA existant, tu as probablement constaté qu'il glisse sous pression. Voici la solution :
- Caractéristiques du rail :

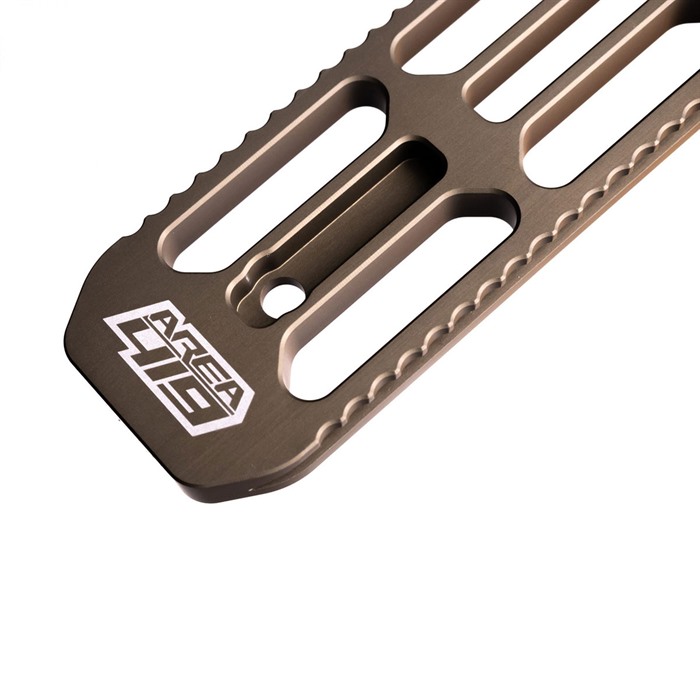

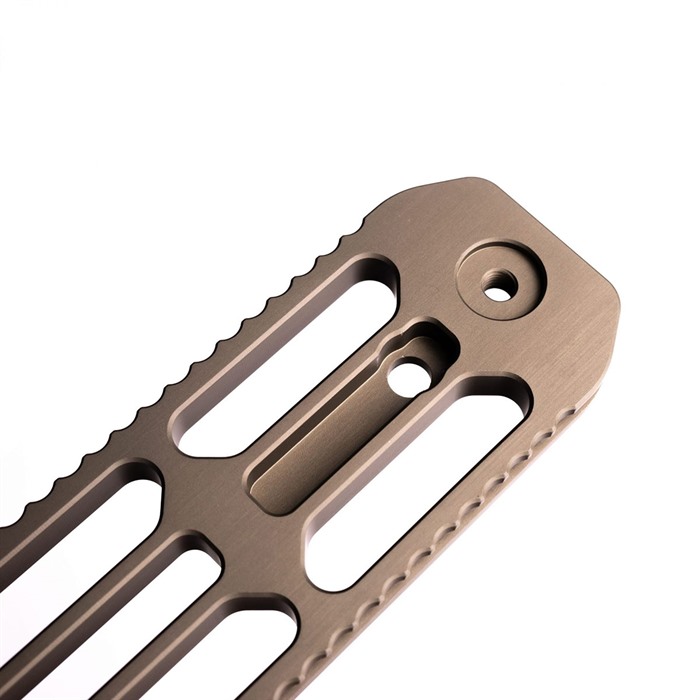

- Les côtés du rail sont dentelés pour s'interfacer avec le design de clamp propriétaire d'Area 419, permettant un verrouillage mécanique sans mouvement possible.
- Les dentelures ne sont pas tranchantes et n'endommageront pas tes sacs ou tes mains.
- Le rail est rétrocompatible avec les accessoires Arca standard, mais ne se verrouillera pas sans la clamp d'Area 419.

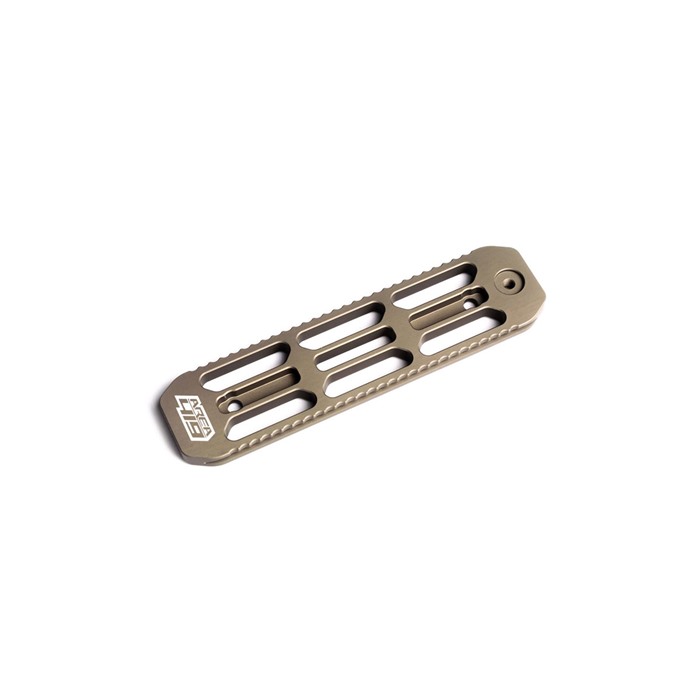

Le Arcalock Dovetail Rail 6" M-LOK mesure 6 pouces de long et ne pèse que 2.2 oz. NOTE : CE RAIL NÉCESSITE 3 SLOTS MLOK CONSECUTIFS POUR ÊTRE FIXÉ.
Le Arcalock Dovetail Rail 12” M-LOK mesure 12 pouces, te permettant d'utiliser toute la longueur du garde-main pour tes accessoires. Le meilleur, c'est qu'il ne pèse que 4.1 oz. NOTE : CE RAIL NÉCESSITE 6 SLOTS MLOK CONSECUTIFS POUR ÊTRE FIXÉ. POUR LES CULASSES AVEC MOINS DE SLOTS MLOK, IL TE FAUDRA UN RAIL UNIVERSAL DE 12" AVEC DES NUS DE FIXATION MLOK.
Caractéristiques techniques
- Fabriqué selon la norme Dovetail RRS 1.5″, garantissant la compatibilité avec les clamps à levier.
- Aucun bord tranchant. Chaque coin est arrondi et chaque bord est chanfreiné sur la machine, ce qui prend plus de temps à produire, mais c'est la seule bonne manière.
- Anodisé en Type 3 Hard Coat pour une durabilité accrue.
- Fabriqué en aluminium 6061-T6.
- Produit en interne aux États-Unis à partir d'aluminium sourcé aux États-Unis sur des CNC fabriqués aux États-Unis.

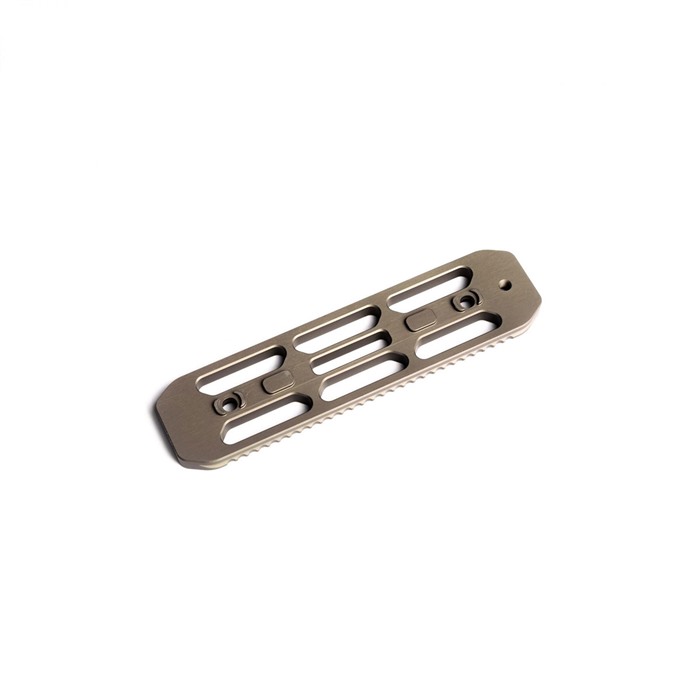

- Le rail est livré avec tout le matériel de montage M-LOK.
