Caratteristiche
- Adatto per: -
- Modello: -
- Peso della spedizione: 0.091kg
- Altezza di spedizione: 8mm
- Larghezza di spedizione: 79mm
- Lunghezza di spedizione: 157mm
- UPC: 050806008304
Prezzi comprensivi di IVA più spedizione
N. prodotto: 080097100
N. fab.: BOLTBODYONLY

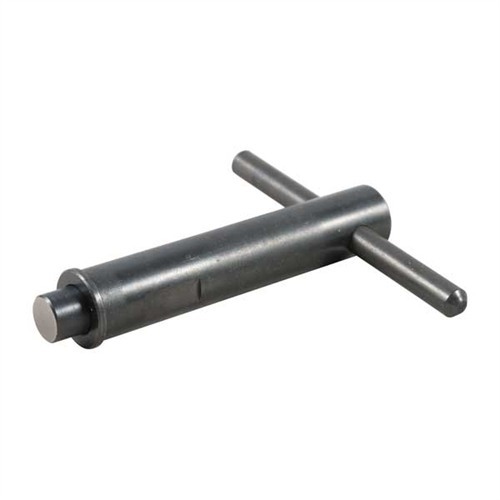

050806008304 L'attrezzo a molla fornisce una pressione costante e rettilinea per mantenere i lugs del bolt quadrati contro il ricevitore durante la lappatura con abrasivo in carburo di silicio da 600 a 800 grit. Fornisce risultati migliori rispetto alla semplice pressione delle dita. Le maniche filettate intercambiabili si adattano alle azioni popolari elencate di seguito.In arretrato, tempi di consegna circa 4-12 settimane dal magazzino negli Stati Uniti.
Prezzi comprensivi di IVA più spedizione
Il BOLT LAPPING TOOL di BROWNELLS è progettato per offrire una pressione costante e diretta, mantenendo i lobi del bullone perfettamente allineati durante la lavorazione con abrasivi in carburo di silicio da 600 a 800 grit.
Questo strumento a molla fornisce una pressione migliore rispetto alla semplice pressione delle dita, garantendo risultati superiori. Le maniche filettate intercambiabili si adattano a diverse azioni popolari, come elencato di seguito.
Il set M14/M1A include una placca di grande diametro e una maniglia speciale necessaria per questi modelli. La manica Mauser Large si adatta alle azioni Mauser a grande anello, mentre la Mauser Small è per le azioni a piccolo anello. La manica Savage Small si adatta alle azioni Savage in tutti i calibri, ad eccezione di Rem Ultra Mag (RUM), Rem SA Ultra Mag (RSUM) e Win Short Mag (WSM). La manica Savage Large si adatta solo alle azioni Savage nei calibri RUM, RSUM e WSM.
Il set One Gun contiene il corpo dello strumento per il bullone, il plunger e la manica della dimensione corretta per il modello elencato. Il set One Gun M14/M1A include il corpo dello strumento per il bullone, il plunger di grande diametro, la manica della dimensione corretta e una manica speciale, oltre a uno strumento di lavorazione del bullone unico per M14/M1A/M1 Garand. Il kit contiene tutti gli strumenti necessari per lavorare tutti i modelli elencati nella tabella.
*Prezzo speciale, vedere qui sotto.
Very nice fit of parts. 31.08.2015
I bought this one-gun kit after trying to use the plunger body from the M14/M1/M1A kit. It did not fit a sleeve I had bought for the Large Ring Mauser. After receiving this kit with it's plunger body I then began trying all the parts one at a time.
Both plunger bodies are 0.5620" and the sleeves are 0.5625 except the M14, it was 0.563. There were little burrs on the plunger body of the M14 kit that made me think it would not fit the different sleeves. All fit well after a little lapping.
I plan on using the bolt lug lapping tool for several rifles I am building. After using the tool I believe I can use it to square the bolt face on a Mauser Large Ring VZ-24. After reaming the sleeve from existing 9/16" to a 5/8" I will press fit a drill bushing that is 5/8 x 3/8 and use the Mason Reamer Burr which has a 3/8" shaft. The Burr has been ground to 0.3740 to 0.3745. It has a buttery slip fit in the Drill Bushing.
Mauser threads are at a 55 deg pitch and not easy to find. Brownells sells the sleeve with the right threads for the '98 and the face truing Burrs. All you need is the drill bushing, the undersized drill, and the reamer to make the altered sleeve to be able to Lapp the lugs with the original unaltered sleeve, and true the face of your bolt with your altered sleeve. After, of course, you check that the receivers threads are true to the action. This can be checked with a mandrel which Brownells has too. This can be done for any rifle that Brownells has a sleeve for. Happy Gunsmithing, JL.
