EGW red dot sights are meant to be installed from the left to the right (with the muzzle facing forward). The dovetail has a progressive taper to allow for easier install. Simply remove the rear sight on your gun and replace it with EGW mount in order to mount your Leupold DeltaPoint Pro, JPoint, Redfield Accelerator, or Optima red-dot sight. You can take the mount off and replace your rear sight at any time. Mounting hardware included. Installation Instructions Remove the rear sight* Install the EGW Sight Mount in the dovetail Tighten set screw (if applicable) Place the red dot sight on the EGW Sight Mount (placing a small piece of paper between the red dot sight and the sight mount will make for easier removal and will keep Loctite off of the red dot sight.) Apply blue Loctite to the provided mounting screws Torque mounting screws to 15in/lbs Modification of your firearm may nullify the manufacturer's warranty. This product should be installed and checked by a qualified gunsmith. No liability is expressed or implied for damage or injury which may result from improper installation or use of this product. This mount does not fit: Desert Eagle Post 2017 Baby Desert Eagle Post 2006 Please take note to the Pre 2017 and Post 2017 differences when placing your order. Pre 2017 rear shelf behind the dovetail is .187" Post 2017 rear shelf behind the dovetail is .120"
Scopri il montaggio ideale per il tuo Desert Eagle pre 2017!

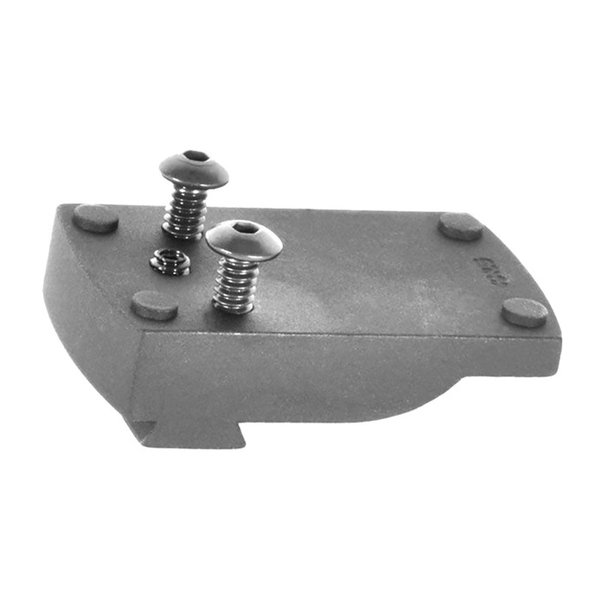

Il montaggio per il Leupold DeltaPoint Pro di EGW è progettato per una facile installazione e compatibilità con il tuo Desert Eagle pre 2017. Questo prodotto è realizzato per garantire precisione e affidabilità durante l'uso.
Descrizione del prodotto
I mirini a punto rosso EGW sono progettati per essere installati da sinistra a destra (con la volata rivolta in avanti). Il dovetail presenta un profilo progressivo per facilitare l'installazione.
- Rimuovi il mirino posteriore dalla tua arma.
- Installa il montaggio EGW nel dovetail.
- Serra la vite di fissaggio (se applicabile).
- Posiziona il mirino a punto rosso sul montaggio EGW (mettere un piccolo pezzo di carta tra il mirino a punto rosso e il montaggio faciliterà la rimozione e manterrà il Loctite lontano dal mirino a punto rosso).
- Applica il Loctite blu sulle viti di montaggio fornite.
- Serra le viti di montaggio a 15in/lbs.
La modifica della tua arma potrebbe annullare la garanzia del produttore. Questo prodotto deve essere installato e controllato da un armaiolo qualificato. Non si offre alcuna responsabilità per danni o infortuni che potrebbero derivare da un'installazione o un uso improprio di questo prodotto.
Attenzione
Questo montaggio non è compatibile con:
- Desert Eagle Post 2017
- Baby Desert Eagle Post 2006
Si prega di notare le differenze tra Pre 2017 e Post 2017 al momento dell'ordine:
- Il ripiano posteriore Pre 2017 dietro il dovetail è di .187"
- Il ripiano posteriore Post 2017 dietro il dovetail è di .120"
