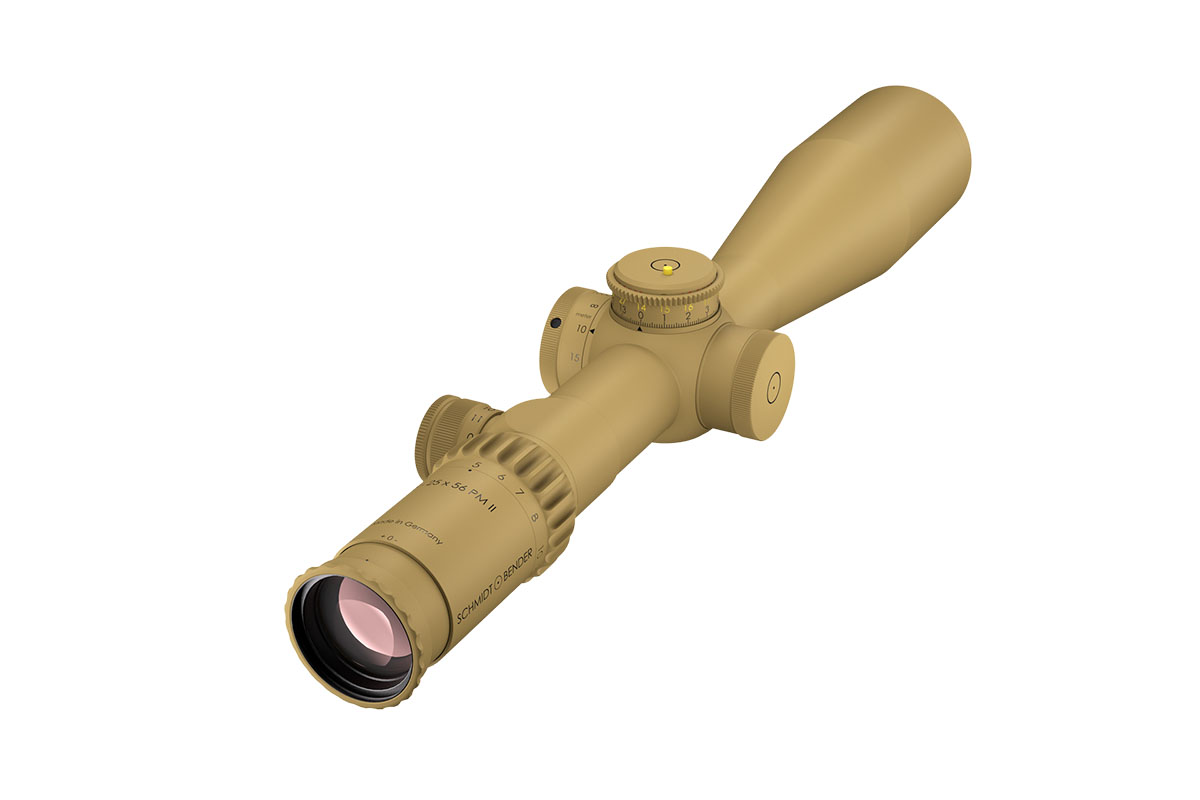

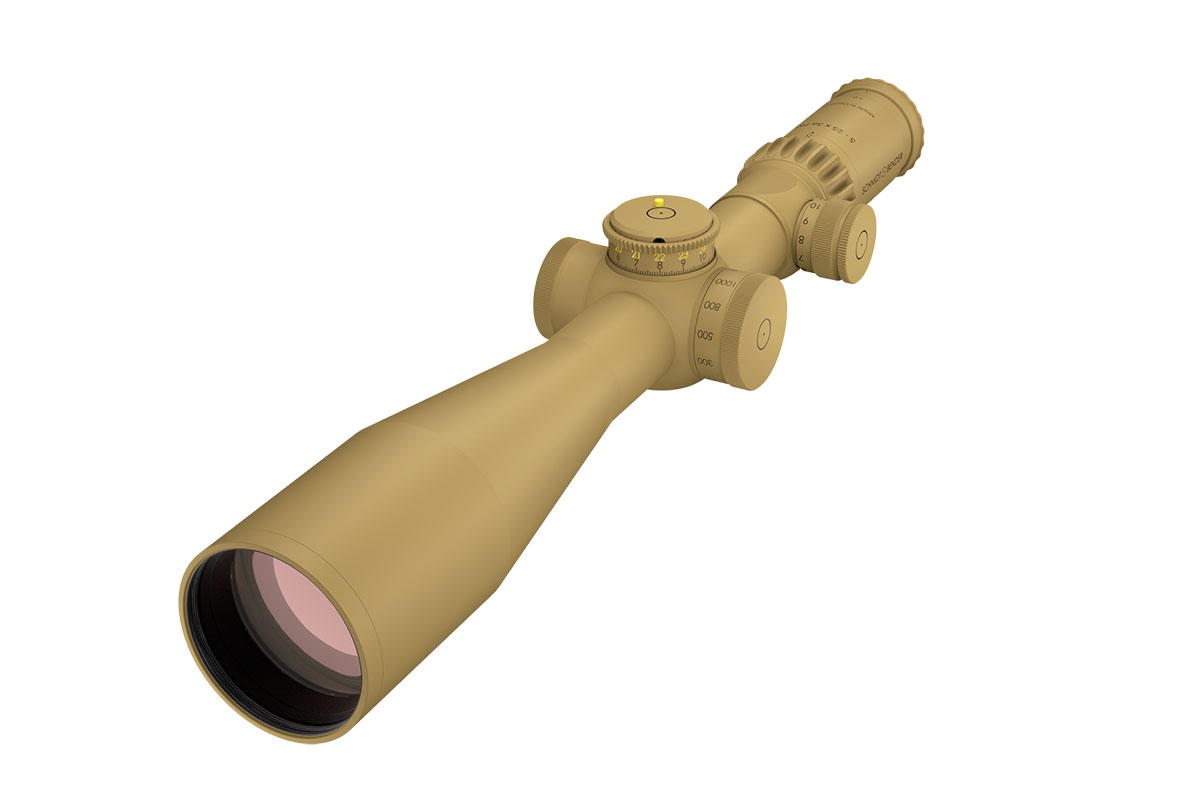

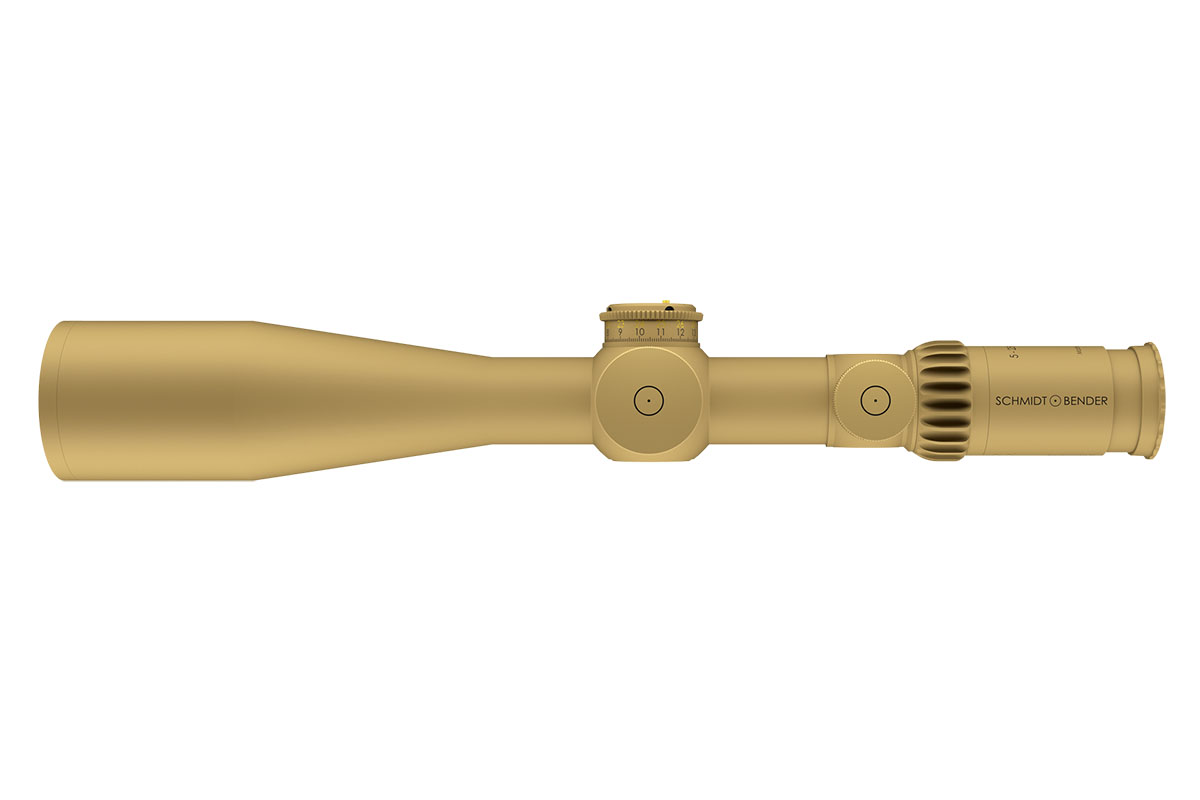

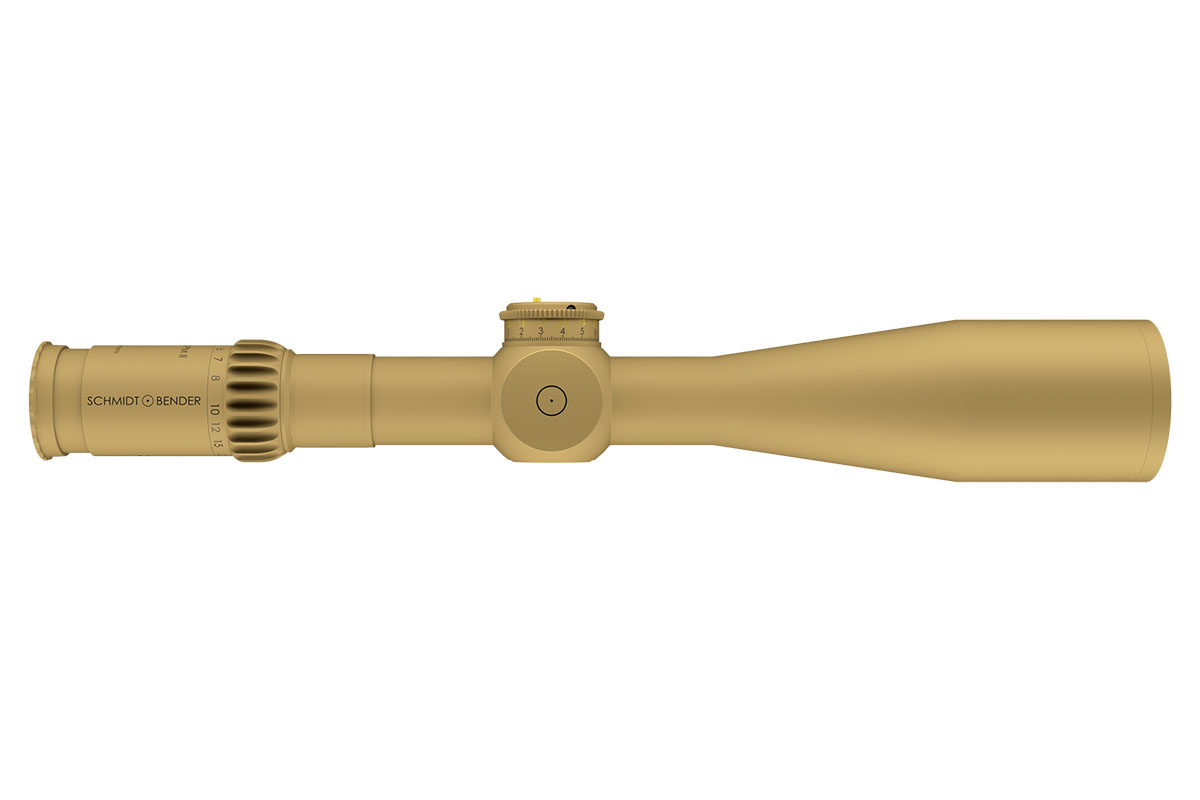

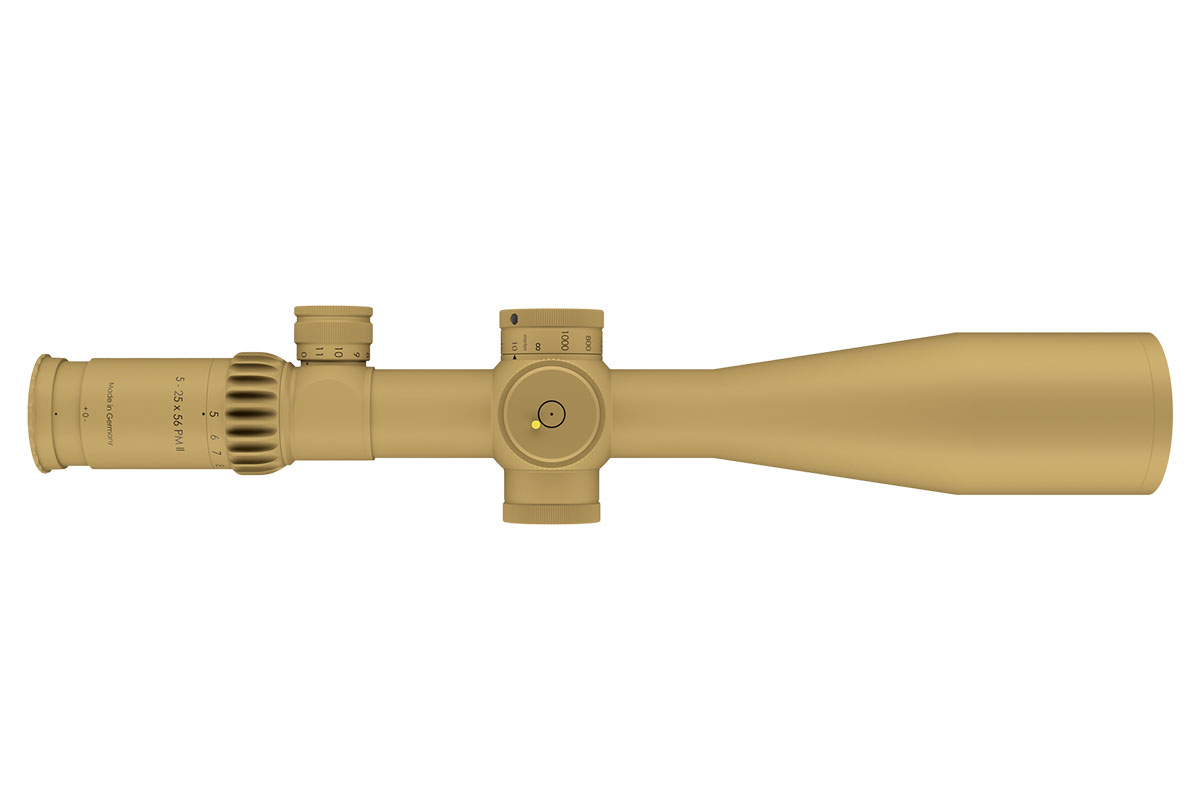

The 5‑25×56 PM II from Schmidt and Bender stands at the pinnacle of variable‑magnification tactical optics, engineered for long‑range precision, outstanding clarity and professional‑level reliability. With a wide 5–25× zoom range and a substantial 56 mm objective lens, it delivers exceptional light‑gathering capability, enabling crisp, bright imagery even at extended distances.
Built upon a rugged 34 mm main tube, the scope accommodates large internal adjustment ranges and is designed for demanding use. It features a reticle in the first focal plane (FFP) so that scale and hold‑offs remain accurate at any magnification. The field of view spans approximately 5.3–1.5 m at 100 m, while the exit pupil ranges around 11.0–2.3 mm, and the eye relief remains generous at around 90 mm. The parallax adjustment typically extends from 10 m to infinity, enabling accurate focus from very close ranges through to extreme distances.
The turret system is engineered for precision: click values as fine as 0.1 mrad (≈1 cm at 100 m) are available, and a double‑turn elevation turret combined with single‑turn windage allows vast usable correction ranges for wind and elevation. Optical transmission exceeds 90 %, and the construction is nitrogen‑filled, fog‑ and waterproof, ensuring full reliability in all climatic conditions.
Key Specifications:
Magnification: 5–25×
Objective Lens Diameter: 56 mm
Main Tube Diameter: 34 mm
Field of View: approx. 5.3–1.5 m @100 m
Exit Pupil: approx. 11.0–2.3 mm
Eye Relief: approx. 90 mm
Parallax Adjustment: from ~10 m to infinity
Click Value: approx. 0.1 mrad (≈1 cm at 100 m)
Optical Transmission: > 90 %
Crafted in Germany to the highest standards, the 5‑25×56 PM II is the go‑to choice for military, law‑enforcement and competition shooters who demand absolute clarity, mechanical integrity and extreme flexibility in one optic.
Die 5–25x56 PM II von Schmidt und Bender – Präzision auf höchstem Niveau!
Die 5–25×56 PM II von Schmidt und Bender steht an der Spitze der variablen taktischen Optiken, die für Langstreckenpräzision, herausragende Klarheit und professionelle Zuverlässigkeit entwickelt wurden. Mit einem weiten Zoom-Bereich von 5–25× und einem grosszügigen 56 mm Objektiv bietet sie aussergewöhnliche Lichtaufnahmefähigkeiten, die auch bei grossen Entfernungen klare und helle Bilder ermöglichen.
Robuste Bauweise
Auf einem stabilen 34 mm Hauptrohr aufgebaut, bietet das Zielfernrohr grosse interne Einstellbereiche und ist für den anspruchsvollen Einsatz konzipiert. Es verfügt über ein Absehen in der ersten Bildebene (FFP), sodass Massstab und Haltepunkt bei jeder Vergrösserung genau bleiben.
Technische Spezifikationen
- Vergrösserung: 5–25×
- Objektivdurchmesser: 56 mm
- Durchmesser Hauptrohr: 34 mm
- Sichtfeld: ca. 5.3–1.5 m @100 m
- Austrittsöffnung: ca. 11.0–2.3 mm
- Augenabstand: ca. 90 mm
- Parallaxeneinstellung: von ~10 m bis unendlich
- Klickwert: ca. 0.1 mrad (≈1 cm auf 100 m)
- Optische Transmission: > 90 %
Präzision und Zuverlässigkeit
Das Turmsystem ist für Präzision ausgelegt: Klickwerte von bis zu 0.1 mrad (≈1 cm auf 100 m) sind verfügbar, und ein Doppeldreh-Elevationsturm kombiniert mit einem Einfachdreh-Windsturm ermöglicht enorme nutzbare Korrekturwerte für Wind und Höhe. Die Konstruktion ist mit Stickstoff gefüllt, beschlag- und wasserdicht, was volle Zuverlässigkeit unter allen klimatischen Bedingungen gewährleistet.
In Deutschland nach höchsten Standards gefertigt, ist die 5–25×56 PM II die erste Wahl für Militärs, Strafverfolgungsbehörden und Wettkampfschützen, die absolute Klarheit, mechanische Integrität und extreme Flexibilität in einem Zielfernrohr verlangen.
